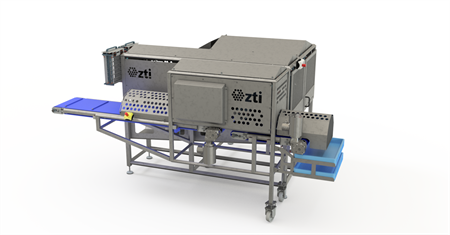

Dicer

The Dicer cuts twelve pieces of fruit per minute into cubes of 25 by 25 by 25 mm. The fruits are placed manually on the conveyor belt and transport the fruit into the machine. Personal contact with the blades is excluded due to this extremely safe construction.

Video Specsheet

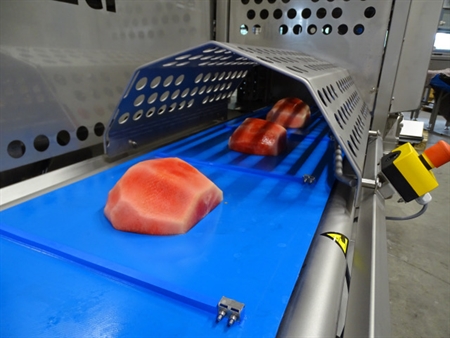

The conveyor belt sets the fruit in the right position for the first stroke. Here the fruit is guided through a combination of horizontal and vertical blades, resulting in fruit fingers. On the next stroke, the fingers pass sideways through a set of vertical blades. Resulting in sharply edged cubes. Ready to freeze, dry, or use directly in for example fruit salads.

Features of the Dicer

  • Capacity: 12 products per minute
  • Size cubes: 25 x 25 x 25 mm (other sizes also possible)
  • Maximum product size: 300 x 300 mm
  • Maximum product height: 200 mm
  • Machine dimensions: ± 3200 x 2300 x 1600 mm (L x W x H)
  • Stainless steel motors
  • Extremely safe and fast
  • Easy access through pivotable belts and doors

Characteristics of all our fruit processing machines

  • Careful treatment and processing extends the shelf life
  • High processing capacity per unit of time
  • Maximum yield per processed product
  • Equals or betters manual processing
  • Visually attractive end product
  • Easy to clean and to service
  • Meet European guidelines for the food-processing industry in relation to hygiene and safety

Features of all ZTI smart machines

  • Smart innovations that distinguish themselves in simplicity
  • Simple and safe to operate
  • Equipped with the latest techniques
  • Optimal coordination of "mechanics" and "electronics"
  • Attractive payback period for your investment

Contact us now
